1.2344 TOOL STEEL

DIN 1.2344 Tool Steel Supplier in China

X40CrMoV5-1 / AISI H13 / JIS SKD61 Hot Work Tool Steel

DIN 1.2344 tool steel, also known as X40CrMoV5-1, is one of the most widely used chromium-molybdenum-vanadium hot work tool steels according to European standards.

With excellent hot strength, thermal fatigue resistance, toughness, and dimensional stability after heat treatment, 1.2344 steel is widely used for demanding high-temperature tooling applications.

At Hubei Risin Mould Material Co., Ltd., we supply a complete range of DIN 1.2344 round bar, flat bar, plates, and forged blocks in rolled and forged conditions.

Our 1.2344 tool steel is widely used in:

✔Aluminum die casting molds

✔Hot forging dies

✔Extrusion tooling

✔High-temperature mold components

✔Industrial tooling applications

With stable quality control, flexible processing options, and professional export experience, Risin provides reliable hot work tool steel solutions for customers across Europe, Asia, America, and global markets.

Chemical Composition (DIN EN ISO 4957 1.2344)

For applications requiring higher cleanliness and improved performance, Risin can supply ESR (Electroslag Remelting) grade 1.2344 steel with enhanced toughness, polishability, and internal quality.

Key Properties

Excellent Hot Strength

DIN 1.2344 maintains excellent mechanical properties at elevated temperatures.

This makes it suitable for tooling exposed to:

✔Continuous heating

✔High-pressure production

✔Thermal cycling

especially in die casting and forging industries.

Outstanding Thermal Fatigue Resistance

During production, molds experience repeated heating and cooling cycles.

1.2344 steel provides excellent resistance against:

✔Heat checking

✔Thermal cracking

✔Surface fatigue

helping extend mold service life and reduce maintenance frequency.

High Toughness and Impact Resistance

Compared with high wear-resistant cold work steels, 1.2344 provides a better balance between hardness and toughness.

It performs reliably under:

✔Mechanical impact

✔Thermal shock

✔Heavy production conditions

Good Hardenability

DIN 1.2344 offers excellent hardenability, allowing uniform hardness throughout larger tooling sections.

This is especially important for:

✔Large die casting inserts

✔Forging dies

✔Heavy-duty tooling components

Typical Working Hardness

After proper quenching and tempering:

Typical hardness: HRC 46-52

The final hardness depends on application requirements and heat treatment conditions.

Applications

1.2344 Steel for Die Casting Molds

DIN 1.2344 is one of the preferred materials for high-pressure die casting applications.

Common components include:

✔Die inserts

✔Mold cores

✔Cavities

✔Slides

✔Ejector components

Suitable for:

✔Aluminum die casting

✔Magnesium die casting

✔Zinc die casting

1.2344 Steel for Hot Forging Dies

Due to its excellent combination of toughness and hot strength, 1.2344 is widely used in forging applications.

Typical applications:

✔Hammer forging dies

✔Press forging dies

✔Punches

✔Inserts

1.2344 Steel for Extrusion Tooling

1.2344 provides reliable performance in high-temperature extrusion environments.

Applications include:

✔Extrusion dies

✔Mandrels

✔Liners

✔Stems

1.2344 Steel for High Temperature Mold Components

For applications requiring higher temperature resistance and durability, 1.2344 can be used for:

✔Mold inserts

✔Wear components

✔Precision tooling parts

DIN 1.2344 Tool Steel Products Available from Risin

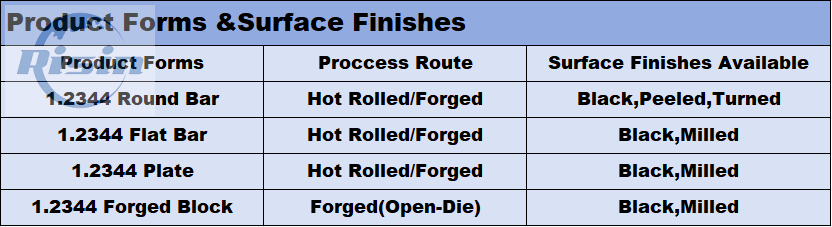

Risin supplies 1.2344 steel in different product forms:

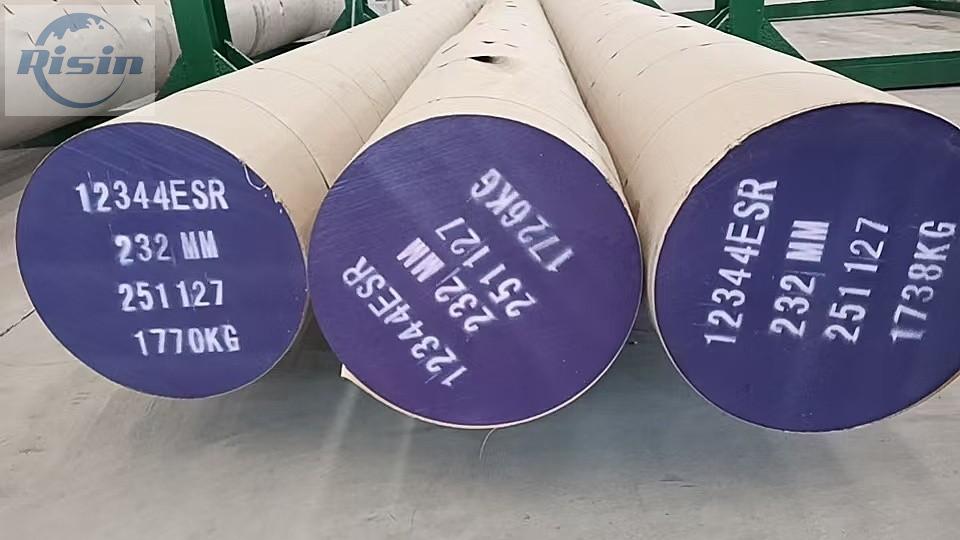

1.2344 Steel Round Bar

Suitable for:

✔Mold inserts

✔Punches

✔Cores

✔Precision tooling components

Available options:

✔ Rolled round bar
✔ Forged round bar
✔ Peeled surface
✔ Turned surface
✔ Customized cutting

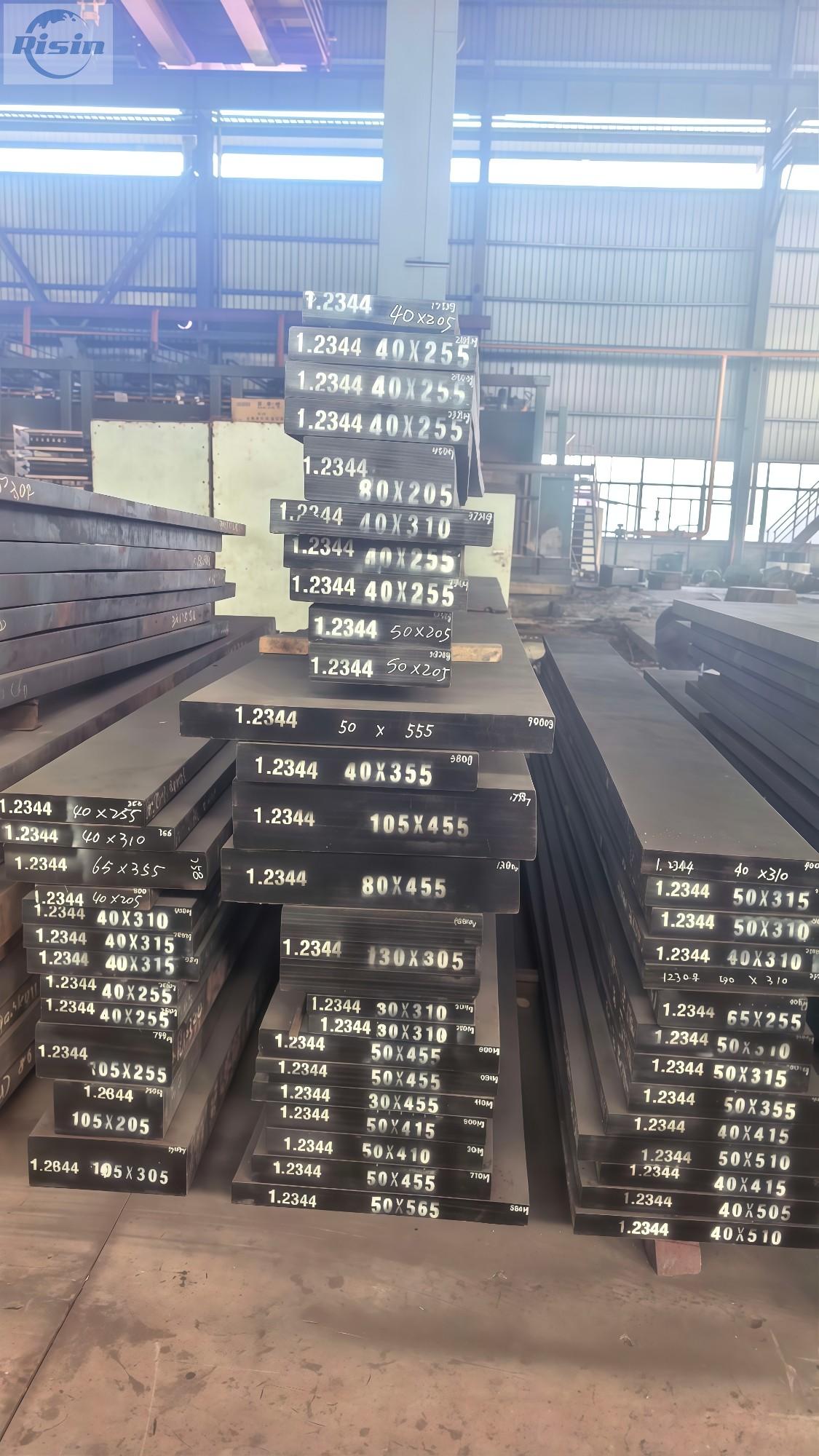

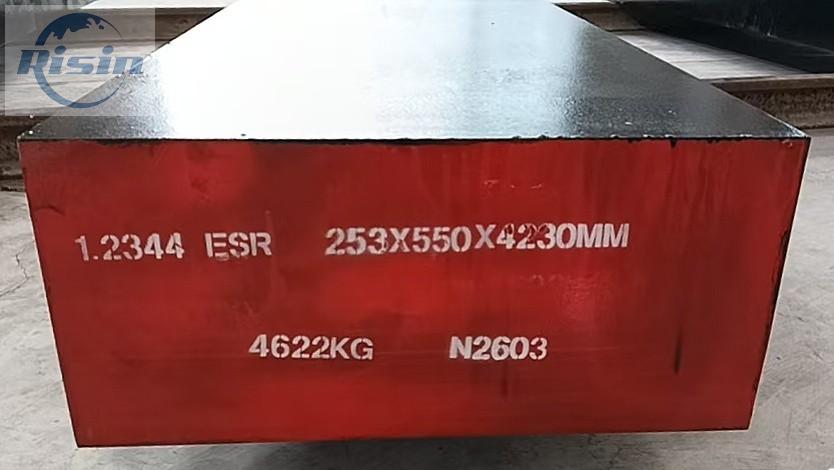

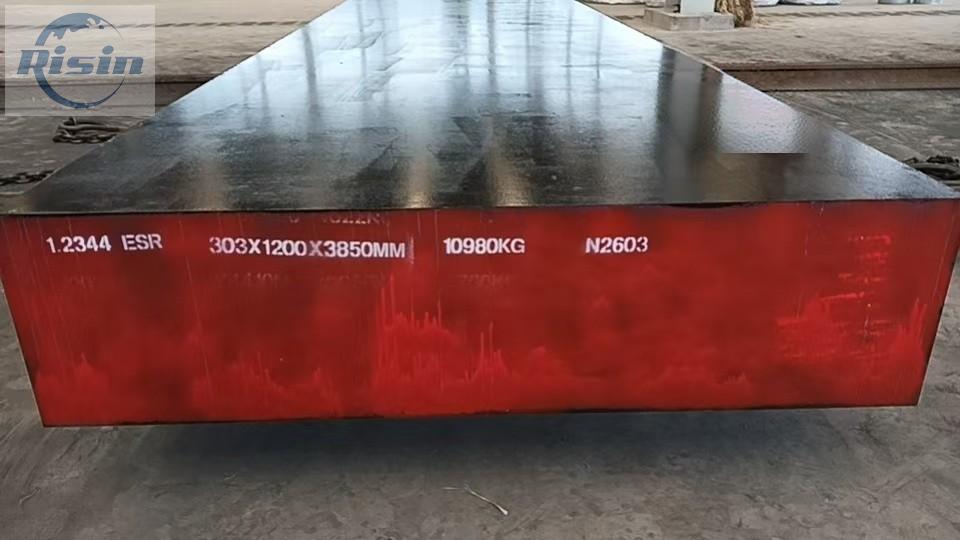

1.2344 Steel Plate and Forged Block

Suitable for:

✔Large mold components

✔Die casting inserts

✔Industrial tooling

Processing options:

✔ Saw cutting
✔ Milling
✔ Rough machining
✔ Customized dimensions

Quality Control & Inspection

Every DIN 1.2344 shipment from Risin is supported by a complete quality assurance system:

✔Chemical analysis by spectrometer for every heat

✔Full traceability through unique heat numbers

✔Ultrasonic testing (UT) according to ASTM A388 or equivalent

✔Hardness inspection after annealing

✔Surface quality inspection

✔Mill Test Certificate (MTC) according to EN 10204 3.1

Our production control covers:

✔Steelmaking

✔Hot rolling and forging

✔Heat treatment

✔Inspection

✔ensuring consistent quality from batch to batch.

Production Lead Time

Standard production lead time:

30-50 days

depending on:

✔Steel size

✔Product form

✔Surface finish

✔Machining requirements

For urgent requirements, partial shipment and production scheduling can be discussed.

Export Packaging

Risin understands that tool steel must maintain excellent condition during long-distance transportation.

Our export packaging includes:

✔Anti-rust oil protection

✔Waterproof wrapping

✔Vapor barrier film

✔Strong wooden crates

✔Steel strapping for heavy plates and blocks

✔Clear shipping marks

All packages are prepared according to international export standards to ensure safe delivery.

Why Source DIN 1.2344 Steel from Risin?

1. Professional DIN Standard Tool Steel Supplier

Risin supplies European standard hot work tool steels including:

✔DIN 1.2344

✔X40CrMoV5-1

✔H13

✔SKD61

providing flexible solutions for international customers.

2. Rolled and Forged Supply Capability

Different tooling applications require different steel conditions.

We provide:

✔Rolled 1.2344 steel for general applications

✔Forged 1.2344 steel for critical and heavy-duty tooling

Helping customers select suitable material according to performance requirements.

3. Stable Quality with Full Traceability

Each shipment includes complete quality documentation:

✔Heat number

✔Chemical composition

✔Mechanical properties

✔Inspection results

Customers can easily verify material quality and origin.

4. Rough Machining Service

To improve customer production efficiency, Risin provides:

✔Saw cut blanks

✔Peeled bars

✔Turned bars

✔Rough machined blocks

Reducing unnecessary machining work and material waste.

5. Flexible Supply Solutions

We support:

✔Standard sizes

✔Customized dimensions

✔Trial orders

✔Long-term supply cooperation

6. Complete Export Documentation

Each shipment can include:

✔Mill Test Certificate

✔Commercial invoice

✔Packing list

✔Shipping documents

✔Supporting smooth customs clearance worldwide.

7. Technical Support Partner

Risin provides more than steel supply.

Our team can support customers with:

✔Material selection

✔Heat treatment discussion

✔Application analysis

✔Tool steel solutions

FAQ About DIN 1.2344 Tool Steel

1. What is DIN 1.2344 tool steel used for?

DIN 1.2344 tool steel is mainly used for die casting molds, hot forging dies, extrusion tools, and high-temperature industrial tooling.

2. Is DIN 1.2344 the same as H13?

DIN 1.2344 and AISI H13 belong to the same hot work tool steel family and have similar chemical compositions under different international standards.

3. What is X40CrMoV5-1 steel?

X40CrMoV5-1 is the European designation for DIN 1.2344 hot work tool steel.

4. What hardness can 1.2344 steel reach?

After heat treatment, DIN 1.2344 steel commonly reaches approximately 46-52 HRC, depending on application requirements.

Contact Risin For DIN 1.2344 Tool Steel Solutions

Looking for a reliable DIN 1.2344 tool steel supplier, X40CrMoV5-1 steel supplier, or H13 steel supplier?

Hubei Risin Mould Material Co., Ltd. provides high-quality hot work tool steel products for:

✔ Die casting manufacturers
✔ Mold makers
✔ Tool steel distributors
✔ Industrial tooling companies

Contact us today for:

✔ 1.2344 steel quotation
✔ Stock availability
✔ Customized sizes
✔ Technical support
